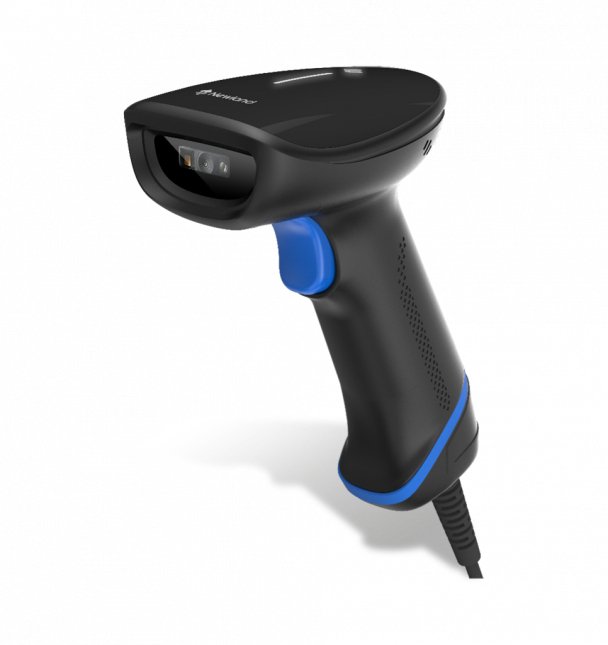

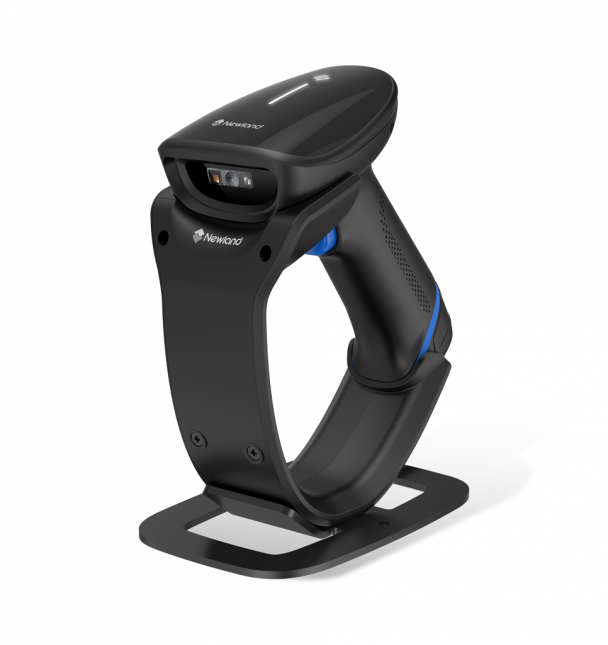

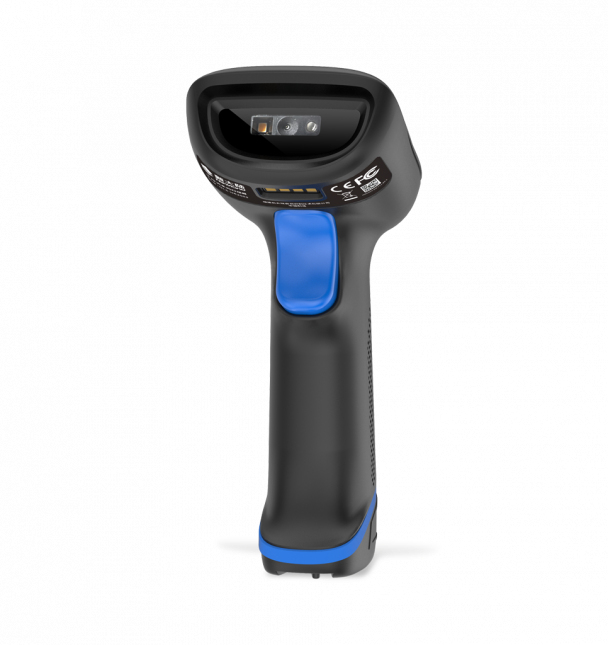

Skener čiarových kódov NEWLAND HR23 Dorada 2D CMOS Handheld Reader, 3.5 mtr. coiled USB cable, smart adjustable stand

Skener čiarových kódov NEWLAND HR23 Dorada 2D CMOS Handheld Reader, 3.5 mtr. coiled USB cable, smart adjustable stand

handheld scanner, 2D, imager, vibration, incl.: cable (USB, coiled), stand (Smartstand), protection class: IP52

Skenování
Sensor type CMOS
Scanner type 1D/2D
2D (matrix & stacked) barcodes supported Aztec Code,Data Matrix,Micro QR Code,MicroPDF417,PDF417,QR Code
Linear (1D) barcodes supported AIM-128,China Post,Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 Databar RSS14,GS1-128 (UCC/EAN-128),ISBN,ISSN,ITF-14,ITF-6,Industrial 2 of 5,Interleaved 2 of 5,MSI-Plessey,Matrix 2 of 5,Plessey,Standard 2 of 5,UPC-A,UPC-E
Type Handheld bar code reader
Pitch reading angle 0 - 60 °
Tilt reading angle 0 - 360 °
Optical sensor resolution (W x H) 640 x 480 pixels
Vertical field of view 34 °
Horizontal field of view 45 °
Možnosti připojení
USB 2.0 ports quantity 1
Standard interfaces USB
Connectivity technology Wired
Výkon
Product colour Black
International Protection (IP) code IP52
LED indicators Yes
Certification IEC62471
Buzzer Yes
Print contrast 20 %
Vibration function Yes
Příkon
Battery voltage 5 V
Power source type USB
Input voltage 5 V
Power consumption 190 mA
Hmotnost a rozměry
Weight 137 g
Width 95 mm
Height 161 mm
Depth 68 mm
Provozní podmínky
Operating temperature (T-T) -20 - 60 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 5 - 95 %
Drop resistance 1.5 m
Technické detaily
Compliance certificates CE,Federal Communications Commission (FCC),RoHS
