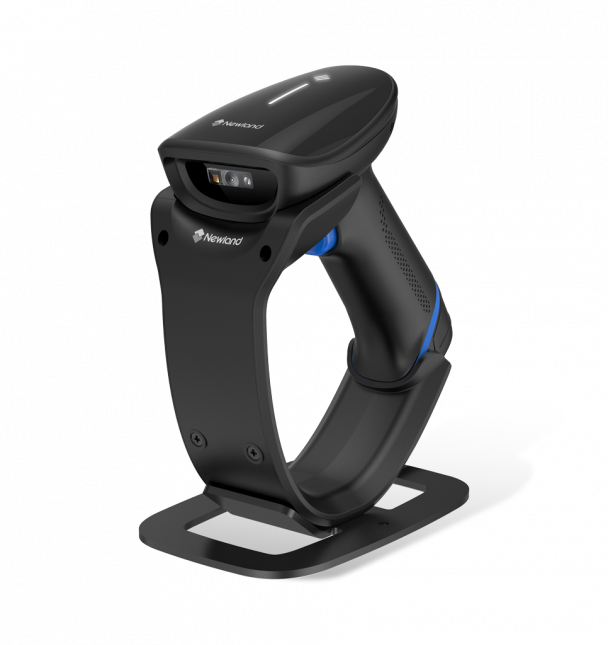

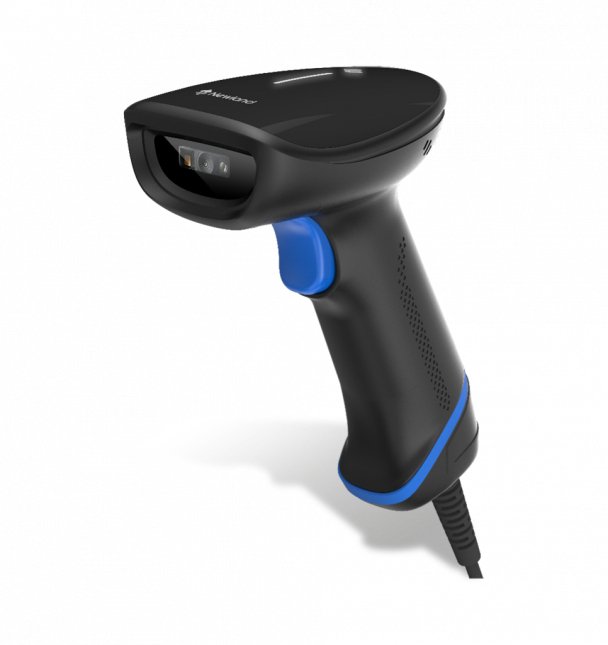

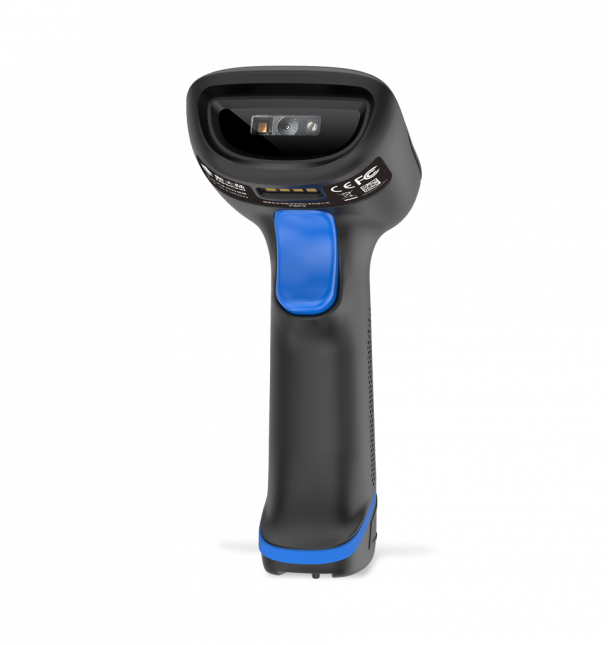

Skener čiarových kódov NEWLAND HR23 DORADA 2D CMOS HANDHELD/READER 3.5 MTR. COILED USB CABLE

Skener čiarových kódov NEWLAND HR23 DORADA 2D CMOS HANDHELD/READER 3.5 MTR. COILED USB CABLE

handheld scanner, 2D, imager, vibration, incl.: cable (USB, coiled), protection class: IP52

Skenování
Sensor type CMOS
Scanner type 1D/2D
2D (matrix & stacked) barcodes supported Aztec Code,Data Matrix,Micro QR Code,MicroPDF417,PDF417,QR Code
Linear (1D) barcodes supported AIM-128,China Post,Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 Databar RSS14,GS1-128 (UCC/EAN-128),ISBN,ISSN,ITF-14,ITF-6,Industrial 2 of 5,Interleaved 2 of 5,MSI-Plessey,Matrix 2 of 5,Plessey,Standard 2 of 5,UPC-A,UPC-E,ISBT 128,GS1 Composite
Type Handheld bar code reader
Pitch reading angle 0 - 60 °
Tilt reading angle 0 - 360 °
Optical sensor resolution (W x H) 640 x 480 pixels
Vertical field of view 34 °
Horizontal field of view 45 °
Možnosti připojení
USB 2.0 ports quantity 1
Standard interfaces USB
Connectivity technology Wired
Výkon
Product colour Black
International Protection (IP) code IP52
LED indicators Yes
Certification IEC62471
Buzzer Yes
Print contrast 20 %
Vibration function Yes
Příkon
Battery voltage 5 V
Power source type USB
Input voltage 5 V
Power consumption 190 mA
Hmotnost a rozměry
Weight 137 g
Width 95 mm
Height 161 mm
Depth 68 mm
Provozní podmínky
Operating temperature (T-T) -20 - 60 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 5 - 95 %
Drop resistance 1.5 m
Technické detaily
Compliance certificates CE,Federal Communications Commission (FCC),RoHS
