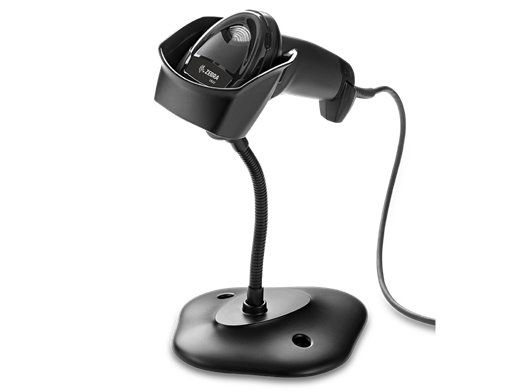

Skener čiarových kódov Zebra EVM DS2208 1D/2D, AREA IMAGER STD RANGE/BLACK USB KIT

dostupné koncom apríla 2024

Skener čiarových kódov Zebra EVM DS2208 1D/2D, AREA IMAGER STD RANGE/BLACK USB KIT

handheld scanner, retail, 2D, imager, multi-interface (RS232, KBW, USB), protection class: IP52, incl.: cable (USB), stand, colour: black

SKENOVÁNÍ
Scanner type 1D/2D
Type Handheld bar code reader
2D (matrix & stacked) barcodes supported Aztec Code,Composite Codes,Data Matrix,Han Xin,MaxiCode,Micro QR Code,PDF417,QR Code,TLC-39
Linear (1D) barcodes supported Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,GS1 DataBar Expanded,Interleaved 2 of 5,MSI,U.P.C.
Pitch reading angle -65 - 65 °
Sensor type LED
Yaw reading angle -65 - 65 °
Tilt reading angle -65 - 65 °
Wavelength 645 nm
Optical sensor resolution (W x H) 640 x 480 pixels
Working distance 368 mm
Motion tolerance (cm/s) 13
MOŽNOSTI PŘIPOJENÍ
Standard interfaces USB,RS-232,RS-485,Keyboard wedge
Connectivity technology Wired
Bluetooth version 4.0
Bluetooth Low Energy (BLE) Y
VÝKON
Product colour Black
International Protection (IP) code IP42
LED indicators Y
Certification EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B
PŘÍKON
Power source type DC
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 2400 mAh
Power consumption 250 mA
Battery life 100 h
AC adapter output voltage 5 V
HMOTNOST A ROZMĚRY
Width 66 mm
Depth 99 mm
Height 165 mm
Weight 161.6 g
ÚDAJE O BALENÍ
Cables included Micro-USB
Charging base N
PROVOZNÍ PODMÍNKY
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 5 - 95 %
TECHNICKÉ DETAILY
Sustainability certificates RoHS
Harmonized System (HS) code 84716070
