Skener čiarových kódov Zebra EVM DS2278 Handheld,Wireless Connectivity,Twilight Black,1D,2D Imager,Bluetooth

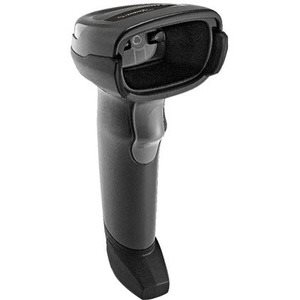

Zebra DS2278 Handheld Barcode Scanner - Wireless Connectivity - Twilight Black - 1D, 2D - Imager - Bluetooth

Zebra DS2278 Bluetooth snímač čiarových kódov:  area imager, multi-interface (RS232, KBW, USB), štandardná optika, čierna (len snímač, bez kábla!)

Technológia snímania: 2D Area Imager
Rozhranie: USB, USB-HID, PS2, RS232, RS485
Spojenie: Bezdrôtový snímač

Snímacia vzdialenosť (závisí od modelu):
MAX. 0-5 CM (KONTAKT)
MAX. 50 CM (NORMÁLNA) .
Rozsah v otvorenom priestore:
MAX. 12M NORMÁLNY

General Information
Brand Name Zebra
Manufacturer Zebra Technologies Corporation
Manufacturer Part Number DS2278-SR00007ZZWW
Manufacturer Website Address http://www.zebra.com
Product Model DS2278
Product Name DS2278 Handheld Barcode Scanner
Product Series DS2200
Product Type Handheld Barcode Scanner
Network & Communication
Bluetooth Yes
Physical Characteristics
Colour Twilight Black
Depth 99.1 mm
Height 175.3 mm
Width 66 mm
Technical Information
Barcode Dimension 1D
Barcode Dimension 2D
Barcode Symbology Supported 1D: Code 39 Code 128 Code 93 Codabar/NW7 Code 11 MSI Plessey UPC/EAN I 2 of 5 Korean 3 of 5 GS1 DataBar Base 32 (Italian Pharma) 2D: PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Chinese Sensible (Han Xin) Postal Codes
Connectivity Technology Wireless
Image Sensor Imager
Warranty
Limited Warranty 3 Year

SKENOVÁNÍ
Type Handheld bar code reader
Scanner type 1D/2D
Pitch reading angle -65 - 65 °
Tilt reading angle -65 - 65 °
2D (matrix & stacked) barcodes supported Aztec Code,Composite Codes,Data Matrix,Han Xin,MaxiCode,Micro QR Code,PDF417,QR Code,TLC-39
Sensor type LED
Wavelength 645 nm
Linear (1D) barcodes supported Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,Interleaved 2 of 5,Plessey,U.P.C.
Optical sensor resolution (W x H) 640 x 480 pixels
Motion tolerance (cm/s) 13
MOŽNOSTI PŘIPOJENÍ
USB version 2.0
Connectivity technology Wired & Wireless
Standard interfaces Bluetooth,USB
Bluetooth Low Energy (BLE) Y
Bluetooth version 4.0
VÝKON
Product colour Black
LED indicators Y
International Protection (IP) code IP42
Built-in display N
PŘÍKON
Power source type Battery,DC
Input voltage 4.5 - 5.5 V
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 2400 mAh
Battery life 84 h
Number of batteries supported 1
HMOTNOST A ROZMĚRY
Weight 214 g
Height 175 mm
Width 66 mm
Depth 90 mm
PROVOZNÍ PODMÍNKY
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 5 - 95 %
TECHNICKÉ DETAILY
Sustainability certificates RoHS
