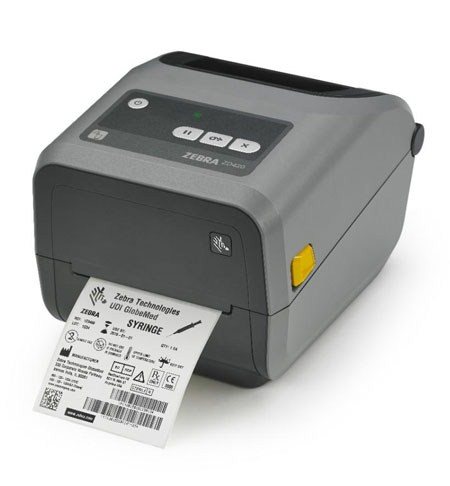

Tlačiareň Zebra ZD421; Direct Thermal, 203 dpi, USB, USB Host, Ethernet, BTLE5, EU and UK Cords, Swiss Font, EZPL

Tlačiareň Zebra ZD421; Direct Thermal, 203 dpi, USB, USB Host, Ethernet, BTLE5, EU and UK Cords, Swiss Font, EZPL

label printer, desktop printer, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 108 mm, print width (max.): 104 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s,
USB, USB Host, Bluetooth (BLE), Ethernet, RAM: 256 MB, Flash: 512 MB, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU, UK), grey


Tisková technologie
Prímý tepelný
Technologie propojení
Wired & Wireless
Pocet portu USB 2.0
1
Wi-Fi Ne
Bluetooth
Ano
Verze Bluetooth
5.0
Bluetooth Low Energy (BLE)
Ano
Pamet flash
512 MB
Vnitrní pamet
256 MB
Jazyk popisu stránky
EPL2,XML,ZBI,ZPL II
Barva
Šedá
Displej
LCD
Úhloprícka displeje
4 "
Vstupní strídavé napetí
100 - 240 V
Frekvence vstupního strídavého napetí
50-60 Hz
Provozní rozsah teplot (T-T)
4.4 - 41 °C
Rozsah teplot pri skladování (T-T)
-40 - 60 °C
Doporucená provozní relativní vlhkost
10 - 90 %
Hmotnost 1350 g
Tisk
Rychlost tisku 152 mm/s
Maximální rozlišení 203 x 203 DPI
Pocet tisknutelných bodu 8 dot
Rucní podavac
Maximální šírka tisku 104 mm
Maximální prumer role 127 mm
Maximální délka štítku 0.991 m
Další charakteristiky
Tlouštka média 0.08 - 0.19 mm
Rozsah relativní vlhkosti pri skladování (H-H) 5 - 95 %
Šírka 177.5 mm
Hloubka 220.8 mm
Výška 150.7 mm
Centrální rídicí jednotka
USB port
Ano
Standardy Wi-Fi
Nepodporovaný
Pocítacový systém
Podporované operacní systémy Windows
Ano
Podporované mobilní operacní systémy
Android,iOS
Udržitelnost
Osvedcení o udržitelnosti
RoHS
Dodržování predpisu v oblasti udržitelnosti
Ano

SPECIFICATIONS
Standard Features

• Print methods: Direct Thermal
• ZPL and EPL programming languages
• 5 status icon, 3 button user interface
• USB 2.0, USB Host
• Printer setup mobile app for Android and iOS via BLE
(Bluetooth Low Energy 5) connection*
* BLE is intended for use with Zebra printer setup mobile app only
• Real Time Clock (RTC)
• OpenACCESS™ for easy media loading
• Dual-wall frame construction
• ENERGY STAR® certified
• ZebraDesigner Essentials – easy label design tool free at
www.zebra.com/zebradesigner
• PDF Direct
• Two-year standard warranty
Physical Characteristics

Dimension Direct Thermal:
8.69 in. L x 6.98 in. W x 5.93 in. H
220.8 mm L x 177.5 mm W x 150.7 mm H
Thermal Transfer Roll:
10.5 in. L x 8.0 in. W x 7.44 in. H
267 mm L x 202 mm W x 189 mm H
Thermal Transfer Cartridge:
10.0 in. L x 8.0 in. W x 7.0 in. H
254 mm L x 202 mm W x 177 mm H
Weight Direct Thermal: 2.98 lbs./1.35 kg
Thermal Transfer Roll: 4.52 lbs./2.05 kg
Thermal Transfer Cartridge: 5.0 lbs./2.3 kg
Printer Specifications

Operating System Link-OS®
Resolution 203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
Memory 512 MB Flash; 256MB SDRAM
64 MB user available non-volatile memory
8 MB user available SDRAM
Maximum Print Width 4.09 in./104 mm for 203 dpi
4.27 in./108 mm for 300 dpi
Cartridge: 4.09 in./104 mm for 203 and 300 dpi
Maximum Print Speed 6 in./152 mm per second (203 dpi)
4 in./102 mm per second (300 dpi)
Media Sensors Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor
Firmware ZPL II; EPL 2; XML; ZBI; PDF Direct
Media, Ribbon and Cartridge Characteristics

Label Length Maximum: 39.0 in./991 mm
Minimum: 0.25 in./6.4 mm
Media Width Direct Thermal: 0.585 in./15 mm to 4.25 in./108 mm
Thermal Transfer Roll: 0.585 in./15 mm to 4.41 in./
112 mm
Thermal Transfer Cartridge: 0.585 in./15 mm to 4.65 in./118 mm
Media Roll Size Maximum outer diameter: 5.00 in./127 mm
Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in.
(25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm)
and 3.0 in. (76.2 mm) using optional adapters
Media Thickness 0.003 in. (0.08 mm) min.; 0.0075 in. (0.19 mm) max.
Media Types Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Ribbon Outside Diameter 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m)
Ribbon Standard Length Roll: 984 ft. (300 m); 243 ft. (74 m)
Cartridge: 243 ft. (74 m)
Ribbon Ratio 1:4 ribbon to media (300 m)
1:1 ribbon to media (74 m)
Ribbon Width Roll: 1.33 in./33.8 mm — 4.3 in./109.2 mm
Cartridge: 4.3 in./109.2 mm
Ribbon Core I.D.
300 meter ribbon 1 in./25.4 mm
74 meter ribbon 0.5 in./12.7 mm
Operating Characteristics

Operating Temp. 40° to 105° F/4.4° to 41° C
Storage Temp. -40° to 140° F/-40° to 60° C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Electrical Auto-detectable (PFC Compliant) 100-240VAC,
50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply
Options

Media Handling Dispenser/Peeler: label peel and present with label present sensor (field installable)
Cutter (field installable)
Communications Field installable: Ethernet 10/100, 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio); Serial RS-232 auto-sensing, DB-9
Factory installed: Ethernet 10/100, 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio)
Accessories

Battery
Provides power to the printer to support a full shift of printing at maximum print speed; supports all connectivity and media handling options

Carrying Case Carrying case with shoulder strap and handles makes it easy to bring your desktop printer and battery to the point of application
Keyboard Display Unit Zebra Keyboard Display Unit (ZKDU) unit for stand-alone printing solutions
Mounting Plate Secure ZD Series printers to countertops or shelves
Enclosed Power Supply
Attached power supply accessory for cord-free installation
Fonts/Graphics/Symbologies

Bar Code Ratios

2:1 and 3:1
1D Bar Codes Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
2D Bar Codes Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Fonts and Graphics 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font
Printers Supplies

For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies to ensure consistent, optimized performance for your Zebra printer.
Regulatory

IEC 60950-1, IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
Environmental Compliance

Environment
• RoHS Directive 2011/65/EU; Amendment 2015/863
A complete list of product and materials compliance, please visit:
www.zebra.com/environment.
Print DNA Software

This printer is supported by our Print DNA suite of software capabilities to get your printer up and running quickly and securely, and enable your printer to evolve with your business needs. Print DNA features may vary by model, and some features may require a license. For more information, please visit
www.zebra.com/printdna.
Included In The Box

Printer, empty ribbon take-up cores (1 in. and 0.5 in.)*, 300 m ribbon core adapters for non-Zebra ribbon (2)*, AC power supply, power cord(s), USB cable, Quick Start Guide, Regulatory Guide
* Empty ribbon take-up cores and ribbon core adapters included with ZD421 thermal transfer models only
Recommended Services

Zebra OneCare™ maintenance plans provide peak performance and device uptime while protecting your critical operations and your printers with defined service levels. For more information go to
www.zebra.com/zebraonecare.
Zebra OneCare Select
Comprehensive Coverage, including printheads, normal wear and accidental breakage
Priority access 24x7 live technical support and software updates
Advance Replacement and Express Shipping (Next Day Device Replacement)
Standard Commissioning
Online Return Material Authorization (RMA) support
Zebra OneCare Essential
Comprehensive Coverage, including printheads, normal wear and accidental breakage
Priority access 8x5 live technical support and software updates
Three-day depot repair turnaround time plus free return ground shipping
Online Return Material Authorization (RMA) support
Product Warranty

ZD421 printers are warranted against defects in workmanship and materials for a period of 2 (two) years from the date of shipment. For the complete warranty statement, please visit
www.zebra.com/warranty.

Markets and Applications

Retail

Shelf labels
Price markdowns
Return tags
Asset and inventory labels
Food information labels
Receipts
Pharmacy labels
Healthcare

Lab and specimen labels
Prescription labels
Patient ID wristbands
Blood and IV bag labels
Patient record labels
Asset labels
Transportation and Logistics

Shipping and receiving labels
Packing slips
Asset labels
Light Manufacturing

Agency labels
Product labels
Apparel tags
Work-in-Process (WIP)
Inventory labels
Shipping labels
Government

Asset labels
Record labels
Services/Hospitality

Service reminder labels
Ticketing
