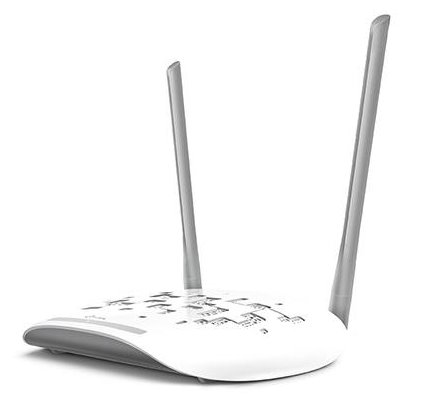

TP-LINK TD-W9960B VDSL/ADSL modem, Wireless router 300 Mbps, 4-Port 10/100Mbps RJ45, RJ11, 2x anténa

Všestranná konektivita – Modem/router TP-Link TD-W9960 je vybaven porty DSL a LAN/WAN a je tak plně kompatibilní se standardy VDSL2/ADSL2+/ADSL2/ADSL. A dokáže zpracovat i připojení ethernet kabelem
Zvýšená rychlost – Super rychlý širokopásmový přenos VDSL až 100 Mb/s a Wi-Fi s přenosovou rychlostí dat 300 Mb/s.
Maximalizovaný dosah – Výkonné externí antény poskytují bezdrátové pokrytí s velmi dlouhým dosahem v jakémkoli směru.
Správa nevyžaduje žádnou námahu – Nastavení zvládnete během několika minut – a díky výkonné aplikaci Tether nebo intuitivnímu webovému rozhraní můžete svou síť spravovat odkudkoli.

HARDWARE FEATURES
Interface 3 10/100Mbps RJ45 LAN Ports
1 10/100Mbps RJ45 LAN/WAN Port
1 RJ11 Port
Button WPS Button
RESET Button
Power ON/OFF Button
External Power Supply 9VDC/0.6A
IEEE Standards IEEE 802.3, 802.3u
VDSL2 Standards ITU-T G.993.2
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)
Dimensions ( W x D x H ) 181.6*129.7*36.2mm
Antenna Type Omni directional, Fixed
Antenna Gain 2 x 5dBi

WIRELESS FEATURES
Wireless Standards IEEE 802.11b, 802.11g, 802.11n
Frequency 2.400-2.4835GHz
Transmit Power <20dBm(EIRP)
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions, Wireless MAC Filtering

SOFTWARE FEATURES
Quality of Service WMM, Bandwidth Control (IP QoS)
Security NAT Firewall, SPI Firewall, Denial of Service (DoS), SYN Flooding, Ping of Death, Access Control, Service Filtering, IP and MAC Address Binding
Operating Modes VDSL/ADSL Modem Router, Wireless Router,
Management Web Based Configuration (HTTP), Remote management, CWMP(TR-069), Web Based Firmware Upgrade, Diagnostic Tools
Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP
VPN Pass-Through IPSec VPN
Protocols Supports IPv4 and IPv6
ATM/PPP Protocols PPPoE (RFC2516)
PPPoA (RFC 2364)
MER\IPoE (RFC 1483 Routed)
IPoA (RFC1577/2225)
Bridge (RFC1483 Bridge)
Advanced Features Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3
APP Tether App

OTHERS
Certification CE, RoHS
Package Contents TD-W9960
External DSL Splitter
RJ-11 DSL Cable
RJ-45 Ethernet Cable
Quick Installation Guide
Power Adapter
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10,
Mac OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Subscription with an internet service provider (for internet access)
Environment Operating Temperature: 0?~40?(32?~104?)
Storage Temperature: -40?~70?(-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
