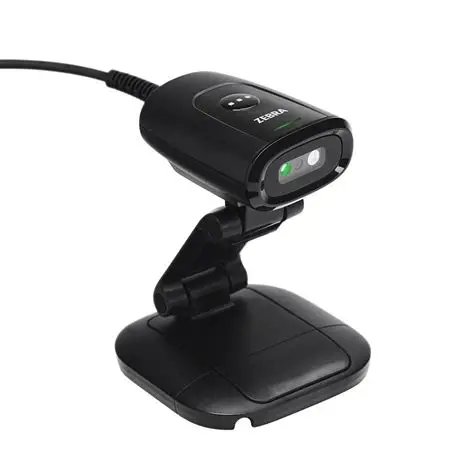

Zebra DS5502-SR Black (with Multi-Mount) USB KIT: DS5502-SR40004ZZWW Scanner,CBL-U10755-01 7' USB Cable,BRKT-MM0055C-04

Skener čiarových kódov  Zebra DS5502-SR Black (with Multi-Mount) USB KIT: DS5502-SR40004ZZWW Scanner,CBL-U10755-01 7' USB Cable,BRKT-MM0055C-04

built-in scanner, 2D, standard range, Area Imager, dual interface (RS232, USB), dimensions, W 30mm, H 56mm, D 72mm, incl.: cable (USB), stand (desk-/wall holder), IP54, colour: black

Skenování
Sensor type LED
Scanner type 1D/2D
Type Fixed bar code reader
2D (matrix & stacked) barcodes supported Aztec Code,Composite Codes,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code,TLC-39
Linear (1D) barcodes supported Codabar,Code 11,Code 128,Code 39,Code 93,EAN 2,EAN 5,GS1 DataBar,MSI-Plessey,PDF417,U.P.C.
Optical sensor resolution (W x H) 1280 x 800 pixels
Wavelength 525 nm
Horizontal field of view 48 °
Vertical field of view 30 °
Možnosti připojení
Standard interfaces RS-232,USB
Connectivity technology Wired
Výkon
Product colour Black
International Protection (IP) code IP54
Protection features Electrostatic Discharge (ESD) protection
Příkon
Power source type DC
Input voltage 4.75 V
Power consumption 360 mA
Hmotnost a rozměry
Weight 65.2 g
Width 72 mm
Height 56 mm
Depth 30 mm
Údaje o balení
External power adapter Yes
Provozní podmínky
Operating temperature (T-T) -20 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 5 - 95 %
Osvědčení
Waste Electrical and Electronic Equipment (WEEE) compliance Yes
Technické detaily
Compliance certificates China RoHS,REACH,RoHS
